UZ_D_Voltage_3V3 Rev01#

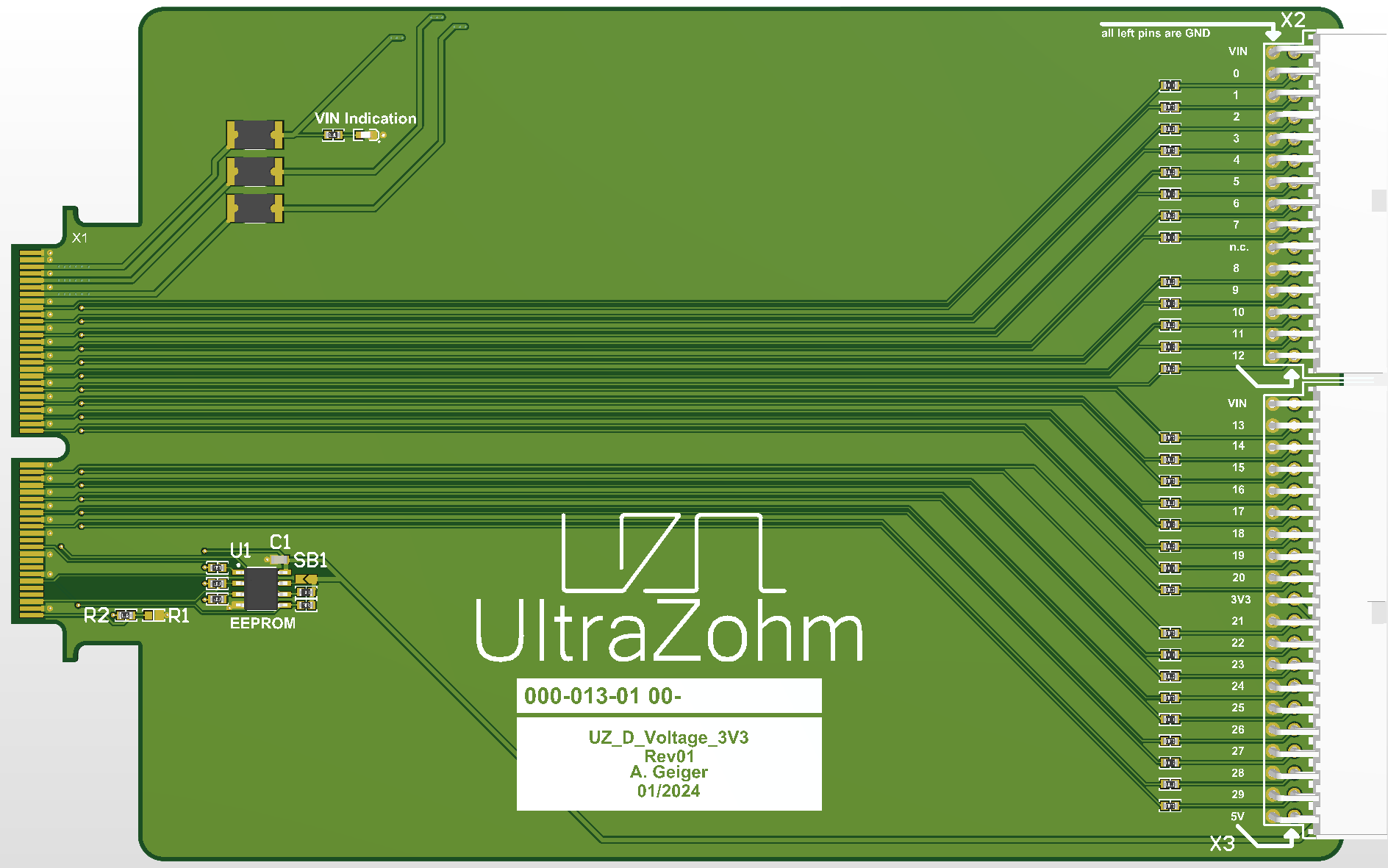

../../../../_images/UZ_D_Voltage_3V3_3D_View_Top_Rev01.png

../../../../_images/UZ_D_Voltage_3V3_3D_View_Bot_Rev01.png

The adapter card provides a generic input and output functionality (GPIO) with a voltage level of 3.3V. The UZ_D_Voltage_3V3 Card is a simplified version of Digital Voltage 3U 2v01, i.e., the voltage level is fixed.

Interface#

The interface uses the Samtec connectors

The appropriate counterparts are:

IPL1-115-01-L-D-RA-K: IPD1-15-D-K
IPL1-120-01-L-D-RA-K: IPD1-20-D-K .

The appropriate crimp contact is CC79L-2630-01-L.

Pinout#

X2: Samtec 30 pin socket IPL1-120-01-L-D-RA-K

../../../../_images/dig_3v3_30pol_rev01.png

X3: Samtec 40 pin socket IPL1-120-01-L-D-RA-K

../../../../_images/dig_3v3_40pol_rev01.png

References#

Compatibility#

Slots D1 to D5 can be used without limitations

Designer#

Designed by Andreas Geiger (TH Nürnberg), 01/2024
