Vitis Programming Modes#

Vitis (Eclipse) provides two launch buttons to program and start the UltraZohm target:

  • Run (green arrow) button ignoring all breakpoints.

  • Debug (green bug) button fully supporting breakpoints.

The intended use of the three UltraZohm launch configurations is:

  • Run_UltraZohm via Run (green arrow)

  • Debug_UltraZohm via Debug (bug)

  • Debug_UltraZohm_fast_restart_PL_reset (DEBUG_WARM_START) via Debug (bug)

../../../_images/programming_modes_run.jpg

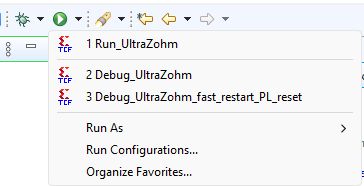

Fig. 39 Vitis Run dropdown for launch configurations Run_UltraZohm#

../../../_images/programming_modes_debug.jpg

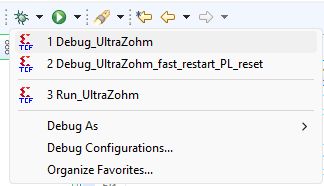

Fig. 40 Vitis Debug dropdown for launch configurations Debug_UltraZohm and Debug_UltraZohm_fast_restart_PL_reset#

Modes#

In all modes, variables can be inspected via the Expressions view in Vitis and the processors can be suspended and resumed. Breakpoints are only supported when the Debug (green bug) button is used to start the programming procedure.

Run_UltraZohm and Debug_UltraZohm#

Default programming modes for UltraZohm.

  • Full system reset rst -system

  • Downloads bitstream to PL and executes PS initialization psu_init

  • Downloads the application ELF(s) and starts execution (con).

Debug_UltraZohm_fast_restart_PL_reset#

Faster programming mode for rapid software iteration.

  • Skips PL programming and PS initialization if the FPGA is already configured; otherwise behaves like the default modes (full PL programming and psu_init).

  • Stops the cores R5:0 and A53:0 to quiesce software-driven AXI activity from PS to PL.

  • Issues a PL reset via psu_ps_pl_reset_config (resets PL logic to initial state similar to reprogramming it with the same bitstream).

  • Performs a core-level reset of the processors, downloads the ELF files, and starts execution.

  • If the system state is inconsistent (e.g., after PL or platform changes), fall back to Run_UltraZohm or Debug_UltraZohm.

Additional notes#

  • After initially building the Vitis workspace via vitis_generate_UltraZohm_workspace.tcl, the launch configurations may only appear after restarting Vitis once.

  • The programming sequence is defined by the TCL startup script tcl_scripts/vitis_debug_run_UltraZohm.tcl.

  • Using separate launch configurations for Run_UltraZohm and Debug_UltraZohm ensures the active launch session is terminated when switching between them.

../../../_images/launch_session_terminate.jpg

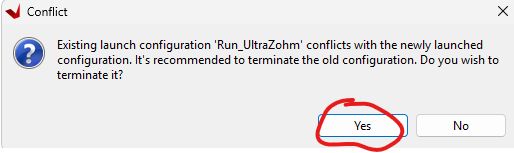

Fig. 41 When prompted, choose Yes to terminate the existing launch session.#

  • To enable Debug_UltraZohm_fast_restart_PL_reset, the interrupt initialization was adjusted to handle the case where a processor is reset while an interrupt is active. In this case, the interrupt ACTIVE state can remain latched across a core-level reset because the GIC is not reset by a core reset. As a remedy, the ACTIVE register is checked during startup and manually cleared by the EOIR (End-of-Interrupt-Register). This applies to both processors, R5:0 and A53:0. See #532 for details.
